High-Performance Aluminum Enclosures & Chassis Solutions
Explore our export-grade standardized and customizable aluminum chassis line, optimized for electromagnetic shielding, thermal efficiency, and structural durability.

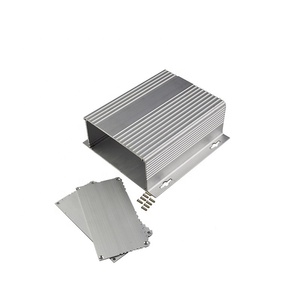

Aluminum Block Slice DIY Electronics Housing & Split Body Wall Mounted Project Box
Heavy-duty aluminum block slicing technology combined with split-body modular structure. Perfect for embedded controllers and wall-mounted IoT devices.
Get Catalog

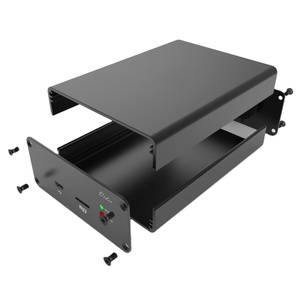

OEM ODM Custom Anodizing Aluminum Shell & Stainless Steel Cabinet Metal Chassis
Precision sheet metal fabrication featuring corrosion-resistant anodized finishes. Custom engineered for server racks, power distributors, and industrial controls.
Get Catalog

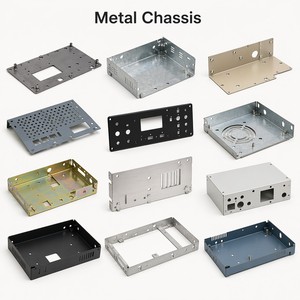

Custom OEM Precision Stamping Aluminum Laser Cut Shell Cover Chassis
High-speed laser cutting combined with automated stamping tools for tight-tolerance aluminum covers, shield plates, and internal mounting frames.
Get Catalog

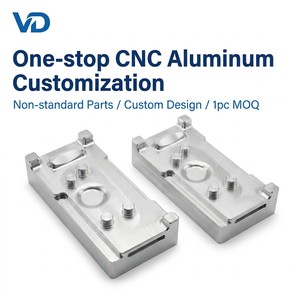

Sandblasted Aluminum Components & Non-Standard CNC Machined Housing Case
5-axis CNC milled solid-block aluminum enclosure featuring fine sandblasting surface treatment. Built for high-frequency RF equipment and defense systems.
Get Catalog

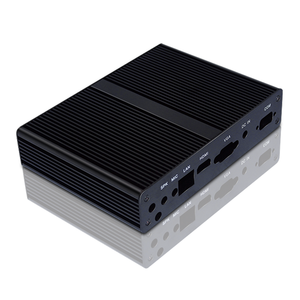

Mini PC Extruded Aluminum Heat Sink Mini-ITX Amplifier Chassis Enclosure
Integrated thermal radiator extruded chassis designed for fanless Mini-ITX systems, digital audio amplifiers, and thermal-dense compute modules.
Get Catalog

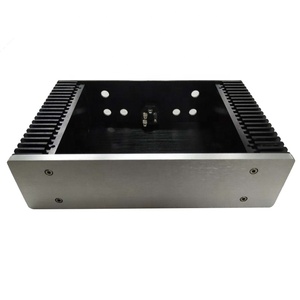

Customized Anodized 6061 Aluminum Enclosure Double Radiator Amplifier Chassis
Heavy-duty 6061-T6 aluminum build with dual external radiator fins. Designed for low harmonic resonance and maximum heat exchange efficiency.
Get Catalog

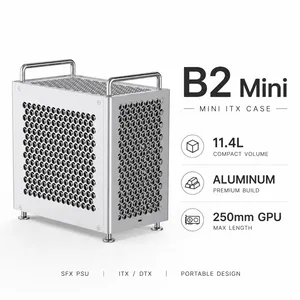

B2 Mini ITX Portable Aluminum Alloy Small Form Factor PC Chassis (11.4L)
Ultra-compact 11.4L aluminum alloy chassis supporting SFX/SFX-L PSUs and 250mm GPUs. Features portable handle and optimized airflow channels.
Get Catalog
Aluminum Alloy Chassis CNC Milling & Wire EDM Industrial Shell Parts
Complex multi-axis CNC milling and wire EDM processed enclosure shells tailored for medical instrumentation, aerospace units, and telecom hardware.
Get CatalogPrecision Aluminum Metallurgy & Chassis Fabrication Standards
An in-depth technical analysis of alloy selection, thermal management dynamics, and CNC tolerance benchmarks for modern electronics packaging.
Alloy Selection Matrix
Choosing the ideal aluminum alloy directly governs structural rigidity, thermal dissipation capabilities, and weight ratios in custom chassis manufacturing:
- AL 6061-T6: Standard for structural enclosures; excellent yield strength (276 MPa) and superb anodizing suitability.
- AL 5052-H32: Ideal for sheet metal bending and stamped enclosures; outstanding marine/industrial corrosion resistance.
- AL 7075-T6: Aerospace-grade alloy providing supreme tensile strength (572 MPa) for high-impact applications.
Thermal Dissipation Engineering
Modern high-density computing modules generate significant localized thermal energy. Our extruded chassis designs incorporate:
- Direct Fin Extrusions: Increasing surface area up to 340% for natural convection cooling without mechanical fan failure risks.
- Thermal Conductivity: Aluminum delivers ~205 W/m·K thermal conductivity, outperforming steel by over 400%.
- Vapor Chamber Integration: Milled internal cavities optimized for flat heat-pipe embedment.
EMI/RFI Shielding & Protection
Electronic compatibility demands stringent mitigation of conductive emissions and environmental elements:
- Conductive Chromate Coating: MIL-DTL-5541 Passivation ensures seamless electrical grounding across chassis joints.
- EMI Gasket Channels: Precision CNC milled tongue-and-groove tracks for silicone conductive gaskets.
- IP Rating Customization: Fully sealed chassis assemblies achieving up to IP67/IP68 ingress protection ratings.
| Manufacturing Process | Typical Tolerance Range | Max Dimensions (mm) | Surface Finish Options | Target Applications |
|---|---|---|---|---|
| 5-Axis CNC Milling | ±0.010 mm to ±0.025 mm | 1500 x 800 x 500 | Bead Sandblasting, Type II/III Anodizing | Aerospace, RF Shielding, High-End Audio |
| Aluminum Extrusion | GB/T 14846 / ISO 2768-m | Cross Section Ø 450 mm | Clear/Black Anodized, Powder Coated | Heat Sinks, Modular Project Boxes, LED Housings |
| Laser Cutting & Bending | ±0.050 mm | 3000 x 1500 (Sheet) | Chromate Conversion, Wet Painting | Server Cabinets, Rackmount Units, Power Distribution |
| Precision Wire EDM | ±0.003 mm | 600 x 400 x 300 | Micro-Polished, Passivated | Medical Device Components, Ultra-Precision Cavities |
Future Procurement Trends in Modern Aluminum Chassis Sourcing
Navigating technology transitions, material supply chains, and environmental standards in the global hardware manufacturing landscape.
1. AI & Edge Computing Thermal Density Shift
As AI processing moves to edge gateways and industrial computing, board-level TDP (Thermal Design Power) has increased by over 150%. Sourcing managers are shifting away from thin sheet metal towards hybrid extruded-milled aluminum chassis capable of serving as structural heat exchangers.
2. Closed-Loop Green Aluminum Compliance
Global regulatory frameworks including the EU CBAM (Carbon Border Adjustment Mechanism) now mandate carbon footprint audits on metallic components. Forward-thinking buyers prioritize suppliers utilizing recycled aluminum billets (up to 75% scrap reuse) refined via hydro-electric energy sources.
3. Ultra-Modular SFF (Small Form Factor) Designs
Enterprise buyers are modernizing systems using modular Mini-ITX and standardized rack unit building blocks. Rapid prototyping of custom front/rear panel cutouts on standardized chassis extrusions drastically reduces tooling lead times from months to days.
World-Class OEM/ODM Export Advantages & Quality Infrastructure
Combining rigorous engineering expertise with advanced CNC machinery to deliver reliable custom aluminum enclosures worldwide.
Vertical In-House Production
From raw aluminum extrusion profile design and 5-axis CNC machining to surface anodizing and laser marking, all manufacturing steps are contained in-house to guarantee quality and protect IP.
Comprehensive Quality Audits
Equipped with Zeiss CMM machines, optical spectrum analyzers, salt spray corrosion test chambers, and coating thickness gauges. Every batch ships with full raw material and dimensional inspection reports.
Rapid DFM & Prototyping
Our veteran engineering team performs free Design for Manufacturability (DFM) audits within 24 hours of CAD receipt (STEP/IGES/DWG), delivering working prototypes in as little as 3-5 working days.
Strict Surface Finish Standards
State-of-the-art anodizing lines offering Type II decorative color anodizing, hardcoat Type III anodizing (up to 50μm thickness for wear resistance), sandblasting (100# to 220# beads), and conductive passivation.
Global Logistics & Export Packaging
Custom foam molded inserts, anti-static polybag protection, and reinforced export plywood crating ensure zero damage during ocean or air transport to North America, Europe, and Asia-Pacific ports.
Flexible Scale (Low MOQ to Mass Production)
We support high-mix low-volume specialized project box orders for medical/defense applications as easily as millions-unit mass production runs for consumer electronics and automotive clients.
Frequently Asked Questions by Global OEM Buyers
Find quick answers to common engineering, quality control, customization, and international delivery queries.
What engineering file formats do you accept for custom chassis quotes?
We accept 3D CAD files in STEP (.stp), IGES (.igs), SolidWorks (.sldprt), and ParaSolid (.x_t) formats. For technical drawing dimensions and tolerance callouts, 2D PDF or DWG files are highly recommended alongside the 3D model.
How do you guarantee color consistency across different anodizing batches?
We utilize digital spectrophotometer color matching system parameters and maintain fixed bath chemistry, current density, and immersion timing. For ongoing contract manufacturing, we retain approved master color boundary samples for comparison.
Can you integrate custom heat pipes or thermal pads directly into the chassis assembly?
Yes. We offer full value-added assembly services. We can CNC-mill custom thermal contact blocks, apply thermal interface materials (TIM), embed heat pipes or vapor chambers, and install PEM press nuts, rivets, and silicone seals prior to shipping.
What is your typical turnaround time for custom aluminum chassis prototypes vs. production?
Standard CNC milled or sheet metal prototypes take 3 to 7 working days. New aluminum extrusion tooling requires approximately 10 to 14 days. Full-scale production batch lead times generally range between 2 to 4 weeks depending on batch volume.
What surface treatment is best for indoor audio vs. outdoor industrial equipment?
For indoor audio or desktop gear, sandblasted Type II anodizing provides a premium silky aesthetic and high scratch resistance. For outdoor industrial equipment, we recommend conductive chromate conversion underneath UV-resistant powder coating or Type III Hardcoat Anodizing for maximum corrosion protection.
Are your aluminum raw materials compliant with international environmental standards?
All aluminum alloys (6061, 6063, 5052, 7075) and surface finishing chemicals used in our facility strictly comply with RoHS 3.0, REACH, and Conflict-Free Minerals regulations. Material Test Reports (MTR) and mill certificates are supplied with every order.
How does your factory handle custom EMI shielding requirements?
We can mill precise gasket channels directly into the chassis flange and apply conductive chromate conversion (MIL-DTL-5541) on internal surfaces to maintain low contact resistance, while keeping external surfaces anodized for aesthetics.
What shipping terms and international trade options do you support?
We offer flexible Incoterms including EXW, FOB (Shanghai/Shenzhen/Ningbo), CFR, CIF, DDP (Delivered Duty Paid), and express courier (DHL/UPS/FedEx) direct to your facility door with complete customs clearance documentation handled.
Ready to Upgrade Your Hardware Infrastructure?
Contact our engineering sales team today for a comprehensive DFM review, precise quotation, and full product catalog within 24 hours.
